• Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)
• Assist handles, driver and right-front passenger
• Cargo tie-downs 6 D-ring attachments on cargo area floor (Not available with (Y3H) Paratransit Package, (5BV) Upfitter electrical provisions or (ZP6) 5-passenger Express Crew Van.)
• Defogger, side windows
• Door locks, power with lock-out protection (Included with (ZQ2) Power Convenience Package. NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.)
• Floor covering, full-length Black rubberized-vinyl (Not available with (RFM) rear floor covering delete, (5BV) Upfitter electrical or (PCH) Hotel Shuttle Package.)
• Headliner, cloth, over driver and passenger
• Lighting, interior with 4 dome lights 1 overhead and 3 LED's on cross members in cargo area, includes defeat switch and door handle-activated switches
• Mirror, inside rearview includes Rear Vision Camera display
• Oil life monitor
• Power outlet, 120-volt
• Seating arrangement, driver and front passenger high-back buckets with head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal airbag.)
• Seats, front bucket with vinyl trim and outboard head restraints, includes inboard armrests. (Requires (**W) interior trim. Includes (DAA) driver and front passenger vinyl visors.)
• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Theft-deterrent system, vehicle, PASS-Key III
• Tow/haul mode selector, instrument panel-mounted
• Trim panels, hinged rear side doors and hinged rear doors (Not available with (Y3H) Paratransit Package or (5BV) Upfitter electrical provisions.)
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition
• Windows, power (Included with (ZQ2) Power Convenience Package.)

• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, full-length box ladder-type
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs

• Airbag deactivation switch, frontal passenger-side (Not available with (AJ3) driver only airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps
• Door beams, steel-side
• Hill Start Assist
• Rear Vision Camera display integrated into rearview mirror (Display included with (DRJ) inside rearview mirror.)
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Tire Pressure Monitoring System (does not apply to spare tire)

ENGINE, 4.3L V6

• with Direct Injection and Variable Valve Timing
• includes aluminum block construction (276 hp [206 kW] @ 5200 rpm
• 298 lb-ft of torque [404 Nm] @ 3900 rpm) (STD)

• ENGINE 4.3L V6 with Direct Injection and Variable Valve Timing includes aluminum block construction (276 hp [206 kW] @ 5200 rpm 298 lb-ft of torque [404 Nm] @ 3900 rpm) (STD)
• GLASS FIXED REAR SIDE DOOR WINDOWS
• REAR AXLE 3.42 RATIO
• CRUISE CONTROL
• SUMMIT WHITE
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• TIRE SPARE LT245/75R16E ALL-SEASON BLACKWALL located at rear underbody of vehicle (STD)
• LICENSE PLATE KIT FRONT
• 2500 VAN PREFERRED EQUIPMENT GROUP includes Standard Equipment
• SHIP THRU PRODUCED IN WENTZVILLE AND SHIPPED TO ADRIAN STEEL
• GLASS REAR DOORS AND SIDE CARGO DOORS (Includes (A12) fixed rear doors window glass and (A13) fixed rear side door window glass.
• BODY STANDARD (STD)
• VISORS DRIVER AND FRONT PASSENGER vinyl in lieu of standard cloth
• DRIVER CONVENIENCE PACKAGE includes Tilt-Wheel and (K34) cruise control
• DOOR SWING-OUT PASSENGER-SIDE 60/40 SPLIT (STD)
• WINDOW SECURITY BAR REAR SIDE DOOR GLASS
• TRANSMISSION 8-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• MEDIUM PEWTER VINYL SEAT TRIM
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS with head restraints and vinyl or cloth trim (STD)
• PAINT SOLID
• GLASS FIXED REAR DOORS WINDOWS
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• SEATS FRONT BUCKET WITH VINYL TRIM and outboard head restraints includes inboard armrests. (STD) Includes (DAA) driver and front passenger vinyl visors.)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE BLACK MANUAL-FOLDING WITH SINGLE PANE GLASS
• Power Door Locks
• Power Windows
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Conventional Spare Tire
• Tires - Front All-Season
• Tires - Rear All-Season
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• WiFi Hotspot
• Vinyl Seats
• Bucket Seats
• Bucket Seats
• A/C
• Tire Pressure Monitor
• Trip Computer
• Power Door Locks
• Power Windows
• Immobilizer
• Power Outlet
• Power Outlet
• Back-Up Camera
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Front Head Air Bag
• Passenger Air Bag On/Off Switch
• Telematics
• Requires Subscription
• Back-Up Camera
• Tire Pressure Monitor
• ENGINE 4.3L V6 with Direct Injection and Variable Valve Timing includes aluminum block construction (276 hp [206 kW] @ 5200 rpm 298 lb-ft of torque [404 Nm] @ 3900 rpm) (STD)
• GLASS FIXED REAR SIDE DOOR WINDOWS
• REAR AXLE 3.42 RATIO
• CRUISE CONTROL
• SUMMIT WHITE
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• TIRE SPARE LT245/75R16E ALL-SEASON BLACKWALL located at rear underbody of vehicle (STD)
• LICENSE PLATE KIT FRONT
• 2500 VAN PREFERRED EQUIPMENT GROUP includes Standard Equipment
• SHIP THRU PRODUCED IN WENTZVILLE AND SHIPPED TO ADRIAN STEEL
• GLASS REAR DOORS AND SIDE CARGO DOORS (Includes (A12) fixed rear doors window glass and (A13) fixed rear side door window glass.
• BODY STANDARD (STD)
• VISORS DRIVER AND FRONT PASSENGER vinyl in lieu of standard cloth
• DRIVER CONVENIENCE PACKAGE includes Tilt-Wheel and (K34) cruise control
• DOOR SWING-OUT PASSENGER-SIDE 60/40 SPLIT (STD)
• WINDOW SECURITY BAR REAR SIDE DOOR GLASS
• TRANSMISSION 8-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• MEDIUM PEWTER VINYL SEAT TRIM
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS with head restraints and vinyl or cloth trim (STD)
• PAINT SOLID
• GLASS FIXED REAR DOORS WINDOWS
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• SEATS FRONT BUCKET WITH VINYL TRIM and outboard head restraints includes inboard armrests. (STD) Includes (DAA) driver and front passenger vinyl visors.)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE BLACK MANUAL-FOLDING WITH SINGLE PANE GLASS
• Power Door Locks
• Power Windows
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Conventional Spare Tire
• Tires - Front All-Season
• Tires - Rear All-Season
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• WiFi Hotspot
• Vinyl Seats
• Bucket Seats
• Bucket Seats
• A/C
• Tire Pressure Monitor
• Trip Computer
• Power Door Locks
• Power Windows
• Immobilizer
• Power Outlet
• Power Outlet
• Back-Up Camera
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Side Air Bag
• Front Head Air Bag
• Passenger Air Bag On/Off Switch
• Telematics
• Requires Subscription
• Back-Up Camera
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Cargo Area Dimensions
• Cargo Area Length : Floor to Console (in)
• Cargo Area Length : Floor to Seat 1 (in)
• Cargo Area Width : Beltline (in)
• Cargo Box (Area) Height (in): 52.9
• Cargo Box Width : Wheelhousings (in)
• Cooling System
• Total Cooling System Capacity (qts): 13.6
• Doors
• Side Door Type: Swing-out
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 105
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Ground Clearance, Front (in): 11
• Ground Clearance, Rear (in): 7.1
• Ground to Top of Load Floor (in): 27.8
• Height, Overall (in): 84.6
• Length, Overall (in): 224.1
• Overhang, Front (in): 39.7
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 20.3
• Step Up Height - Side (in): 20.8
• Wheelbase (in): 135
• Width, Max w/o mirrors (in): 79.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-frame
• Interior Dimensions
• Passenger Capacity: 2
• Steering
• Steering Ratio (:1), At Lock: 17.2
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: ZW9
• Body Style: Cargo Van

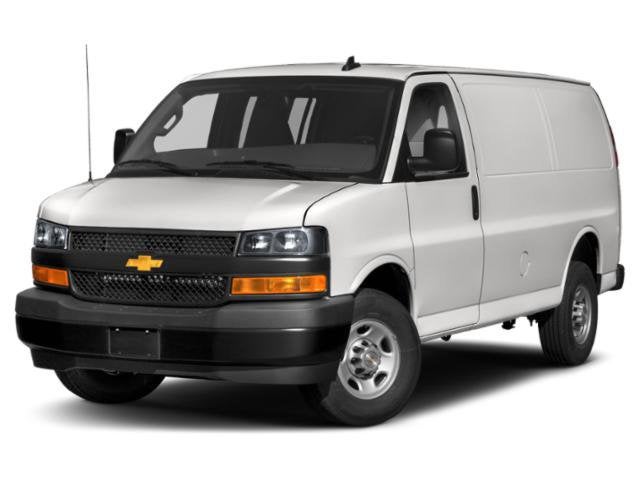

• Vehicle Name: Chevrolet Express Cargo Van
• Suspension
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 2205
• Front Tire Order Code: XLP
• Front Tire Size: LT245/75R16E
• Rear Tire Capacity (lbs): 3042
• Rear Tire Order Code: YLP
• Rear Tire Size: LT245/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZLP
• Spare Tire Size: LT245/75R16E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Maximum Trailering Capacity (lbs): 10000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 740
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7400
• Vehicle
• Rear Door Type: Dual Swing-out
• Weight Information
• Curb Weight - Front (lbs): 2930
• Curb Weight - Rear (lbs): 2227
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5360
• Gross Combined Wt Rating (lbs): 13000
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 16 x 6.5
